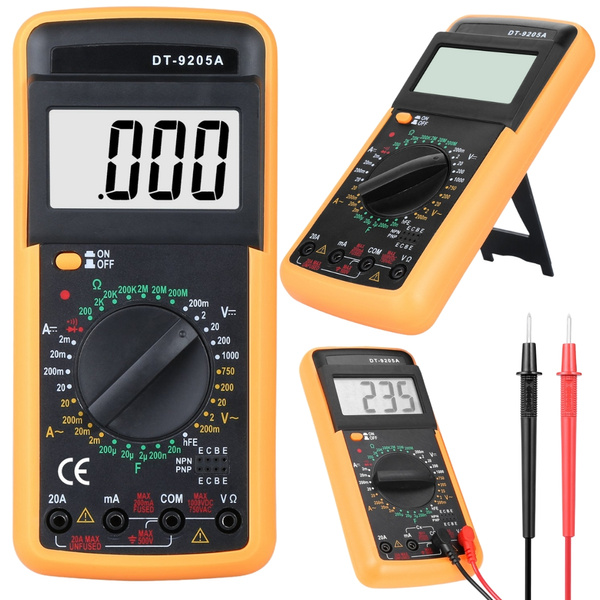

DIGITAL CURRENT MULTIMETER DT9205A LCD DIGITIZER

Capacitance measurement, high current/voltage ranges The meter has a large and easy to read display, very good precision of measurements. The product we offer is an indispensable tool for every service technician.

It has a triple short-circuit (circuit continuity) test signalisation:

✅ Audible signalling (buzzer 0.5s);

✅ Numerical signalling;

✅ LED indication (red LED)

The meters allow the following types of measurement:

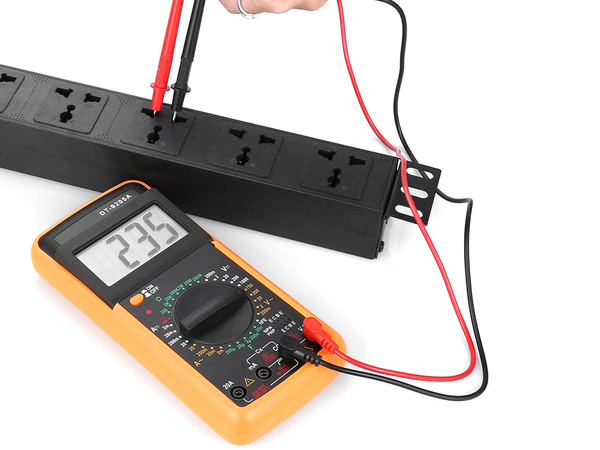

✅ Measurements of direct (DC) and alternating (AC) voltage

✅ Measurement of direct (DC) and alternating current (AC) intensity

✅ Resistance measurements

✅ Capacitance measurements

✅ Measurement of hFE of transistors

✅ Conductive voltage measurements of diodes

✅ Circuit continuity check

TECHNICAL SPECIFICATIONS:

✅ Product code: 11028

✅ High maximum ranges for DC current and voltage measurement (20A/1000V);

✅ Automatic power off (auto power off), effectively prevents battery discharge;

✅ Useful ranges for measuring small DC currents (2mA/20mA - smallest indication is 0.001mA!);

✅ Capacitor capacitance measurement (up to 6 ranges, up to 200uF!);

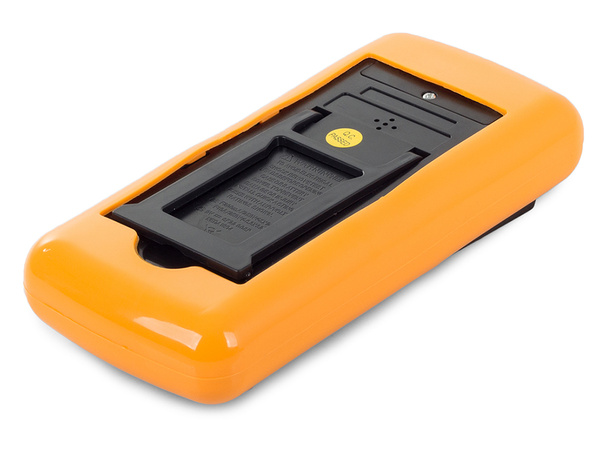

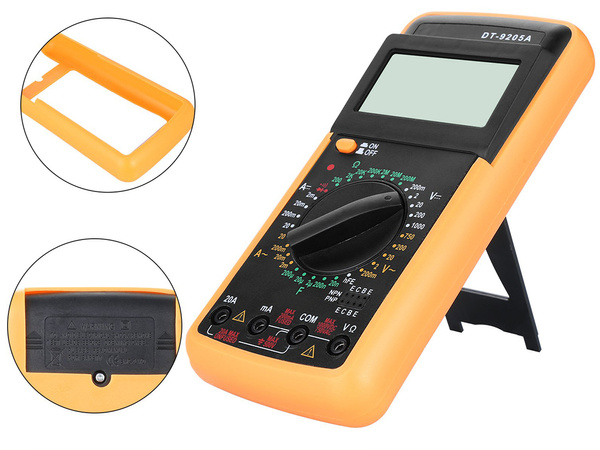

✅ Rubber case, holster, for protection against mechanical damage and shock.

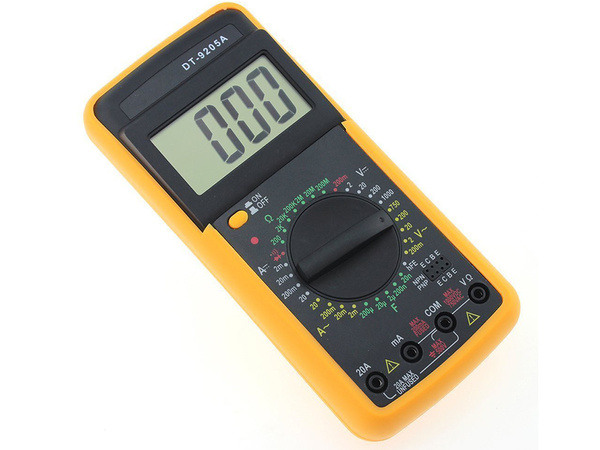

✅ Large, easy-to-read LCD display

✅ Increased display size.

✅ Very good measurement precision

TECHNICAL DATA:

✅ DCV:

• 200m/2/20/200[V] +/-(0.5%+1)
• 1000V +/-(0,8%+2)
• 0.1mV-1000V

✅ ACV:

• 200mV +/-(1.2%+5)
• 2/20/200[V] +/-(1%+5)
• 750V +/-(1,2%+5)
• 0.1mV-750V

✅ DCA:

• 2m/20m[A] +/-(1%+3)
• 200mA +/-(1,5%+3)
• 20A +/-(2%+10)
• 1uA-20A

✅ ACA:

• 2mA +/-(1.2%+5)
• 20mA +/-(1,2%+5)
• 200mA +/-(1%+5)
• 20A +/-(2%+10)
• 10uA-20A

✅ OHM:

• 200OHM +/-(1%+10)
• 2k/20k/200k/2M[OHM] +/-(1%+3)
• 20MOHM +/-(1%+5)
• 200MOHM +/-(5%+20)
• 0.1OHM-200MOHM

✅ CAP:

• 2n/20n/200n/2u/200u[F] +/-(4%+3)
• 1pF-200uF

✅ Transistor test: yes

✅ Automatic circuit breaker: yes

✅ Diode test: yes

✅ Circuit continuity indication: yes

✅ LCD display: yes

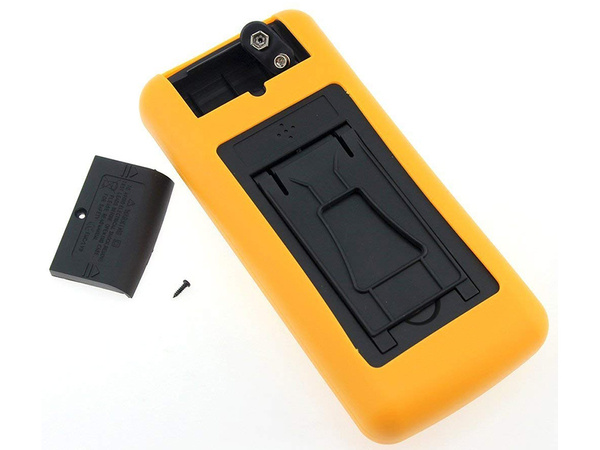

✅ Power supply: 2 x AAA batteries (included)

✅ Display range: 1-999

✅ Display size: 3.3cm x6.3cm

✅ Size: 19cm x 9cm x 3.5

KIT INCLUDES:

☑️ Factory new digital meter

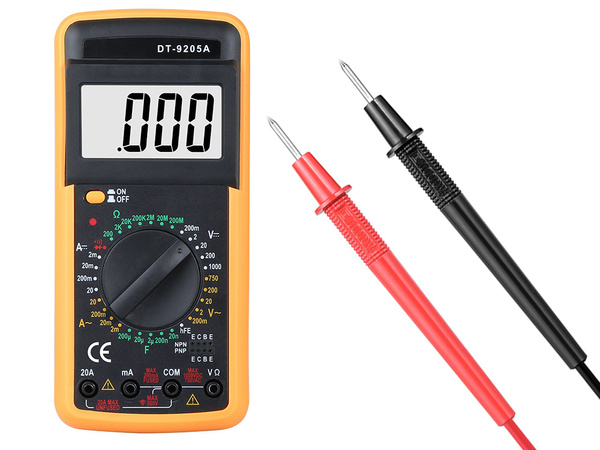

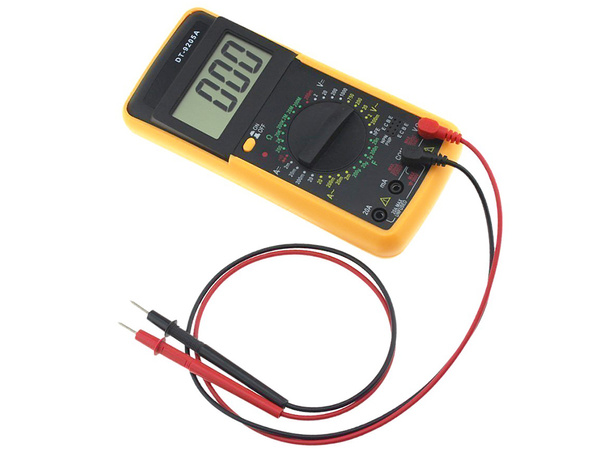

☑️ A set of test leads

☑️ 2 x AAA batteries

☑️ Original packaging
