Digital multimeter meter tester with lcd signal
Digital multimeter meter tester with lcd signal
Digital multimeter meter tester with lcd signal
Digital multimeter meter tester with lcd signal
Digital multimeter meter tester with lcd signal
Digital multimeter meter tester with lcd signal
Digital multimeter meter tester with lcd signal
Digital multimeter meter tester with lcd signal
Digital multimeter meter tester with lcd signal
Digital multimeter meter tester with lcd signal
Number of pieces in a collective carton (discount)100

Digital multimeter meter tester with lcd signal

Size
Availability and ShippingQuantity
Sizeuniversal
Shipment on Monday (263 pcs. in stock)

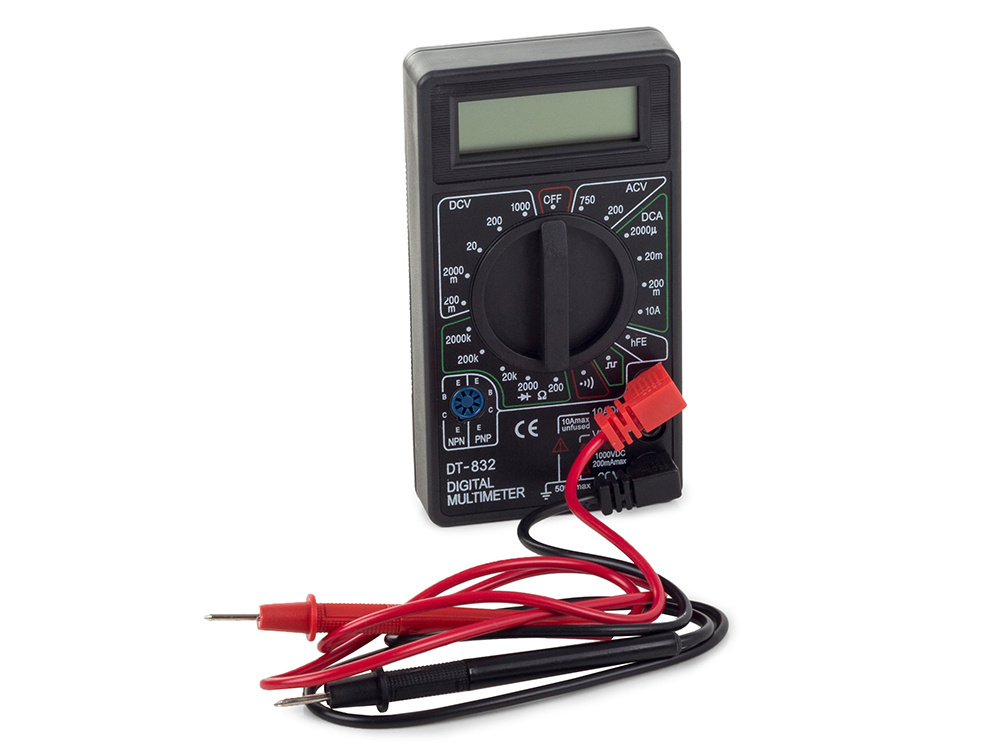

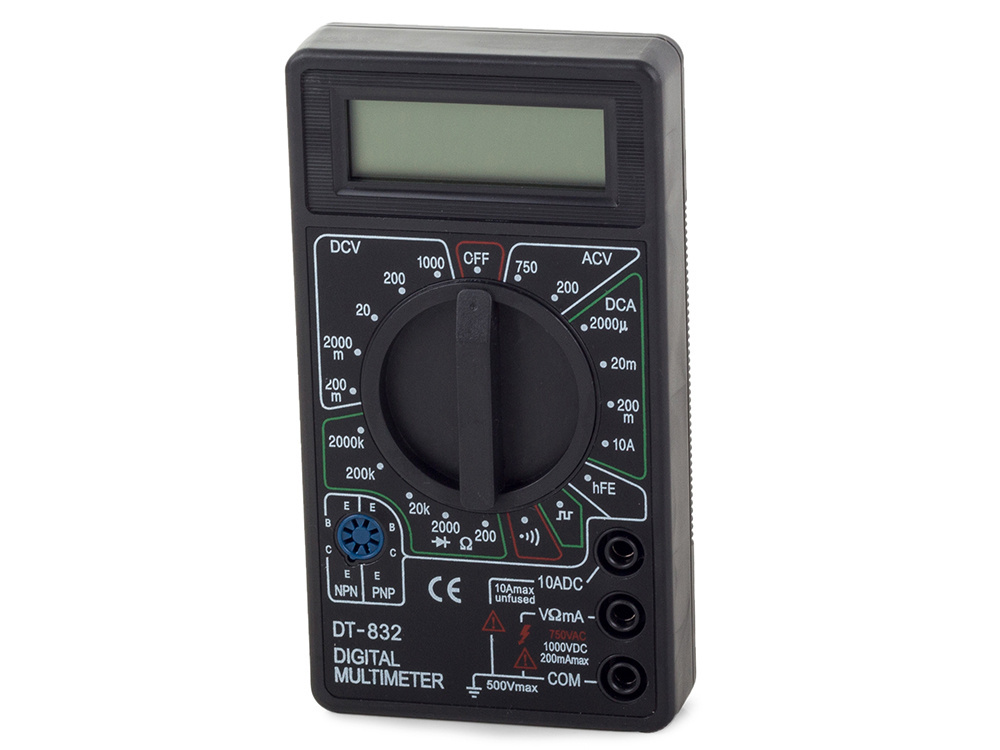

DIGITAL METER
DT-832
DIGITAL


Technical Specifications:

  • High maximum DC current and voltage measurement ranges
  • High maximum AC voltage measuring ranges
  • Useful ranges for measuring small DC currents
  • It has a housing that protects against shock
  • Developed in accordance with the IEC-1010 standard for electronic measuring instruments in CAT II / CAT III overvoltage and pollution category 2.
  • The meter has a CE certificate


The meter enables the following types of measurements:

  • DC and AC voltage measurement
  • DC current measurement
  • Measurement of resistance
  • HFE measurement of transistors
  • Measurement of diode forward voltage
  • Circuit continuity test


Technical data:
- DCV:

  •     200m +/- (1.0% + / - 2)
  •     2000m / 20/200 [V] +/- (1.2% + / - 2)
  •     1000V +/- (1.5% + / - 2)
  •     0.2 mV-1000V

- ACV:

  •     200V +/- (2.0% + / - 10)
  •     750V +/- (2.0% + / - 10)
  •     200V-750V

- DCA:

  •     2000uA / 20mA +/- (1.5% +/- 2)
  •     200mA +/- (2% +/- 2)
  •     10A +/- (3% +/- 2)
  •     2000U-10A

- OHM:

  •     200/2000 / 20k / 200k [ohm] +/- (1.2% + / - 2)
  •     2000kohm +/- (1.5% +/- 2)
  •     200ohm-2000kohm
  •     Transistor test: yes
  •     Diode test: yes
  •     Circuit continuity signaling: yes
  •     LCD display: yes
  •     Battery: 9V 6F22
  •     Display range: 1-999
  •     Display size: 15x46mm
  •     Dimensions: 67x124x22mm


Developed in accordance with the IEC-1010 standard for electronic measuring instruments in CAT II / CAT III overvoltage and pollution category 2.

Set contains:

  • Brand new digital meter DT-832
  • A set of test leads
  • 9V 6F22 battery
  • Original packaging



Symbol
11031
Producer code
5907451303979
Number of pieces in a collective carton (discount)More

For purchasing multiple items in a collective carton - 2% discount

100
EAN code
5907451303979
