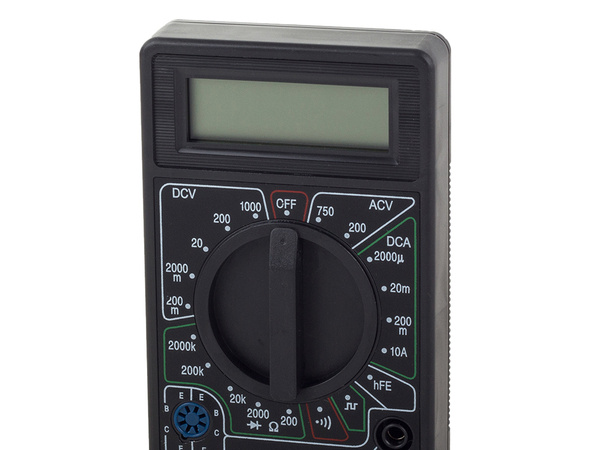

Capacitance measurement, high current/voltage ranges The meter has a large and easy to read displayThe product we offer is an indispensable tool for every service technician.

TECHNICAL SPECIFICATIONS:

✅ Product code: 11031

✅ High maximum ranges for DC current and voltage measurement

✅ High maximum measuring ranges for AC voltage

✅ Useful measurement ranges for small DC currents

✅ Has a housing that protects against electric shock

✅ Developed in accordance with IEC-1010 standard for electronic measuring instruments with CAT II / CAT III overvoltage and contamination category 2.

✅ The meter is CE certified.

THE METER ALLOWS THE FOLLOWING TYPES OF MEASUREMENTS:

✅ DC and AC voltage measurement

✅ Measurement of DC current intensity

✅ Measurement of resistance

✅ Measurement of hFE of transistors

✅ Measurement of conduction voltage of diodes

✅ Circuit continuity test

TECHNICAL DATA:

- DCV:

✅ 200m +/-(1,0%+/- 2)

✅ 2000m/20/200[V] +/-(1.2%+/- 2)

✅ 1000V +/-(1,5%+/- 2)

✅ 0.2 mV-1000V

- ACV:

✅ 200V +/-(2,0%+/-10)

✅ 750V +/-(2,0%+/-10)

✅ 200V-750V

- DCA:

✅ 2000uA/20mA +/-(1.5% +/-2)

✅ 200mA +/-(2% +/-2)

✅ 10A +/- (3% +/-2)

✅ 2000uA-10A

- OHM:

✅ 200/2000/20k/200k[ohms] +/-(1.2%+/-2)

✅ 2000kohm +/-(1.5% +/- 2)

✅ 200ohm-2000kohm

✅ Transistor test: yes

✅ Diode test: yes

✅ Circuit continuity indication: yes

✅ LCD display: yes

✅ Battery: 9V 6F22

✅ Display range: 1-999

✅ Display size: 15x46mm

✅ Dimensions: 67x124x22mm

Developed in accordance with IEC-1010 standard for electronic measuring instruments with CAT II / CAT III overvoltage and contamination category 2.

KIT INCLUDES:

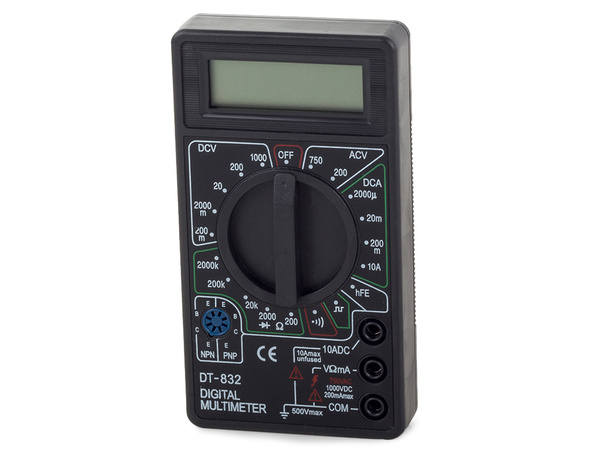

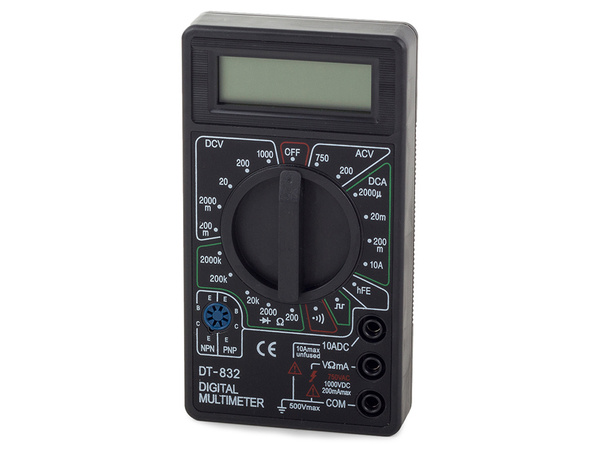

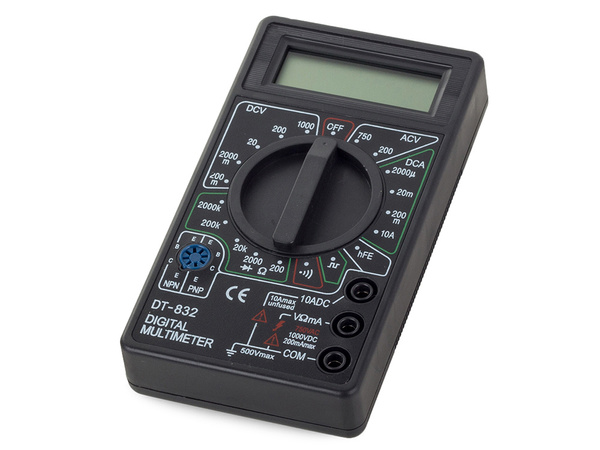

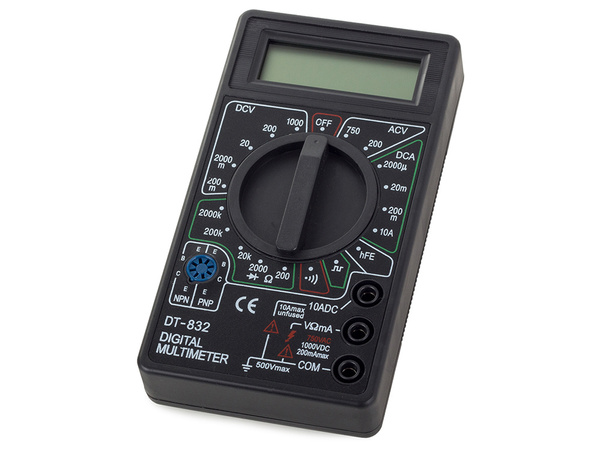

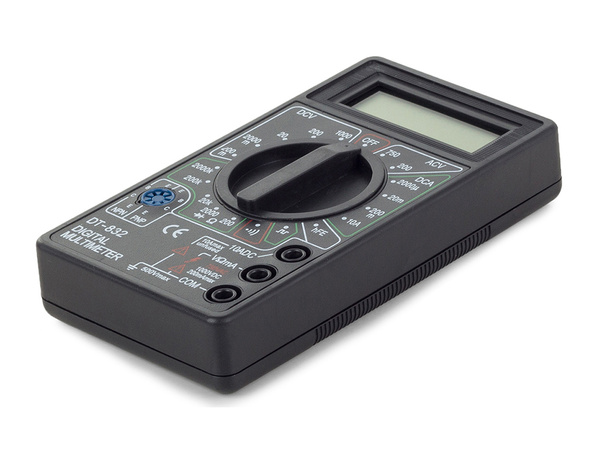

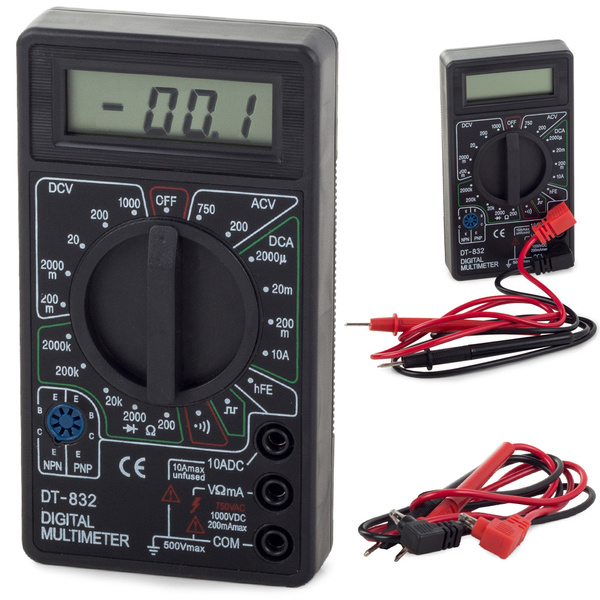

☑️ Factory new DT-832 digital meter

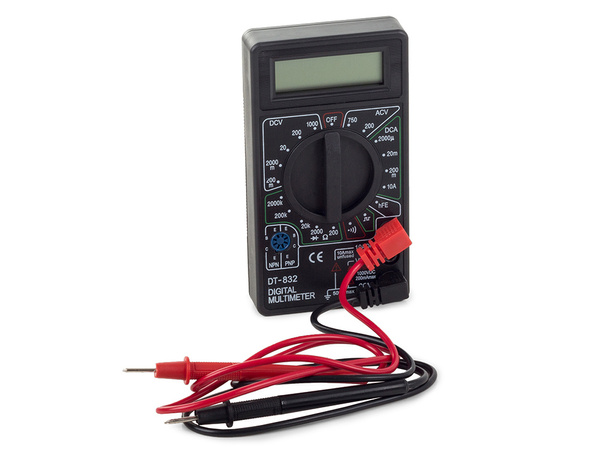

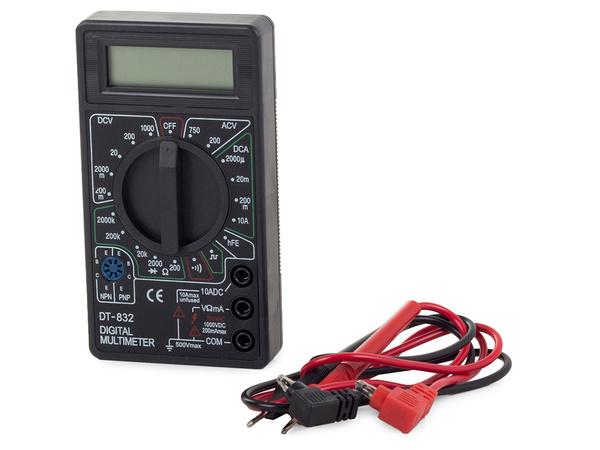

☑️ A set of test leads

☑️ 9V 6F22 battery

☑️ Original packaging
