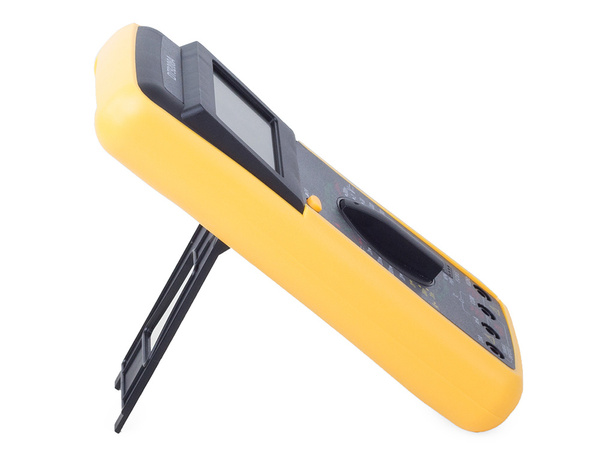

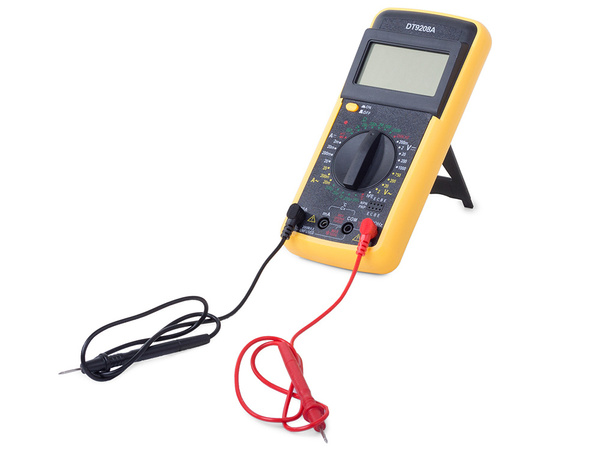

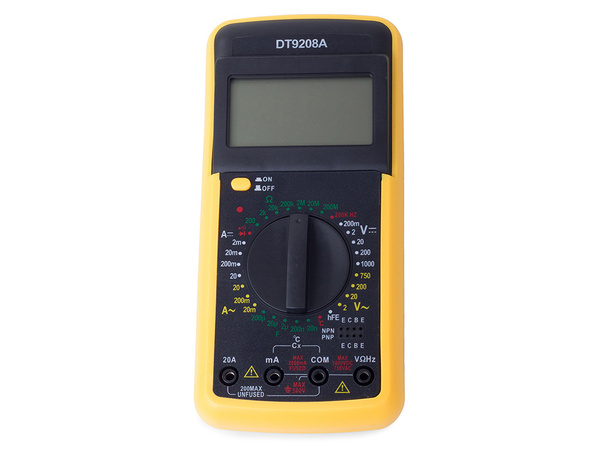

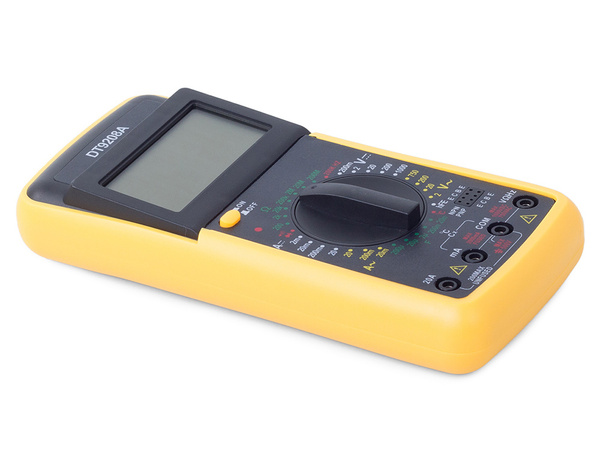

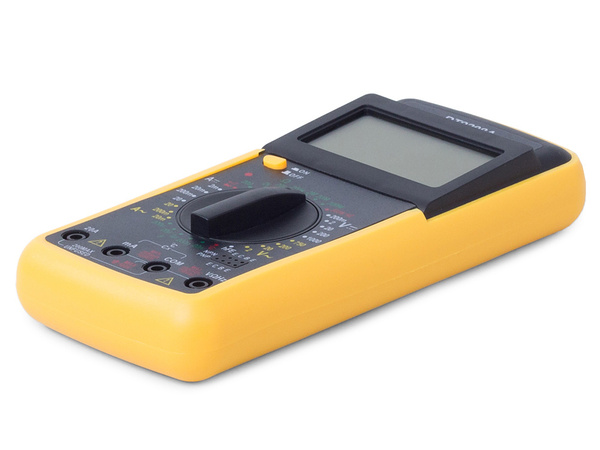

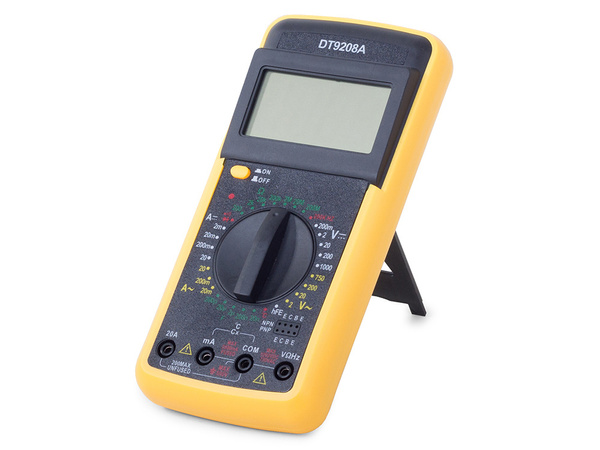

DIGITAL LCD CURRENT MULTIMETER DT9208A PROBE

The product we offer is an indispensable tool for every service technician.

TECHNICAL SPECIFICATIONS:

✅ Product code: 11032

✅ High maximum current and DC voltage measurement ranges (20A/1000V)

✅ Useful measurement ranges for small DC currents (2mA)

✅ Capacitor measurement (6 ranges up to 200 uF)

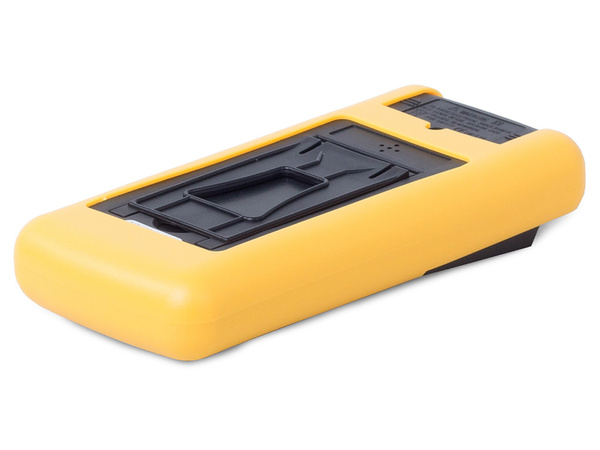

✅ Rubber holster for protection against mechanical damage and shock

✅ Developed in compliance with IEC-1010 standard for electronic measuring instruments with CAT II / CAT III overvoltage and contamination category 2

✅ CE certified

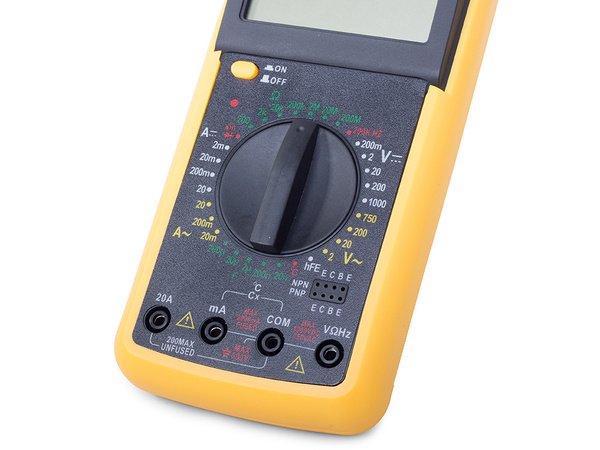

The meter allows the following types of measurements:

✅ DC and AC voltage measurement

✅ Measurement of direct current DC and alternating current AC

✅ Measurement of resistance

✅ Measurement of capacitance of capacitors

✅ Measurement of hFE of transistors

✅ Measurement of conduction voltage of diodes

✅ Control of circuit continuity

✅ Temperature measurement

TECHNICAL DATA:

✅ DCV:

• 200m/2/20/200/1000[V] +/-(0,5%+1)
• 1000V +/-(0,8%+2)
• 0.2mV-1000V

✅ ACV:

• 200mV +/-(1.2%+3)
• 2/20/200[V] +/-(0,5%+1)
• 750V +/-(1,2%+5)
• 0.2mV-750V

✅ DCA:

• 2m[A] +/-(0.8%+1)
• 20m[A] +/-(1%+3)
• 200mA +/-(1,2%+1)
• 20A +/-(2%+5)
• 10uA-20A

✅ ACA:

• 20mA +/-(1%+3)
• 200mA +/-(1,8%+3)
• 20A +/-(2%+5)
• 10uA-20A

✅ OHM:

• 200OHM +/-(0.8%+3)
• 2k/20k/200k/2M[OHM] +/-(0,8%+1)
• 20MOHM +/-(1%+2)
• 200MOHM +/-(5%+10)
• 0,2OHM-200MOHM

✅ CAP:

• 2n/20n/200n/2u/200u[F] +/-(4%+3)
• 1pF-200uF

✅ TEMP:

• -40 C - 400 C +/-0.75%(+/-3)
• 400 C - 1000 C +/- 1.5%(+/- 5)

✅ FREQUENCY:

• 200kHz +/- 1.5%(+/-10)

✅ Transistor test: yes

✅ Automatic circuit breaker: yes

✅ Diode test: yes

✅ Circuit continuity indication: yes

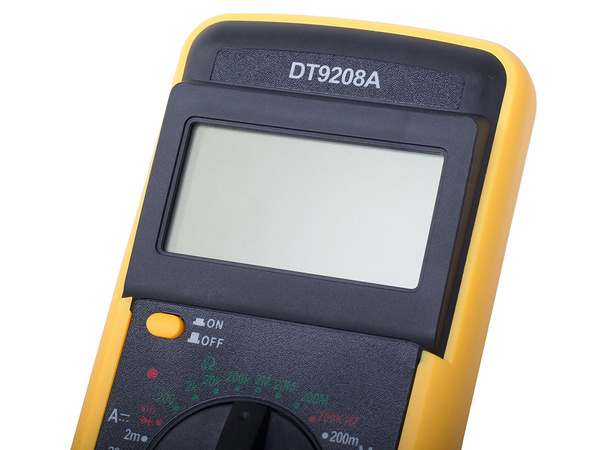

✅ LCD display: yes

✅ Battery: 2xAAA

✅ Net weight: 300g

✅ Display range: 1-999

✅ Display size: 33x63mm

✅ Dimensions: 91x189x32mm

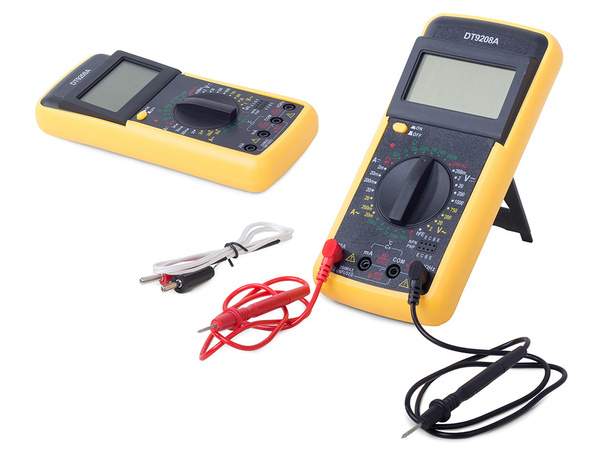

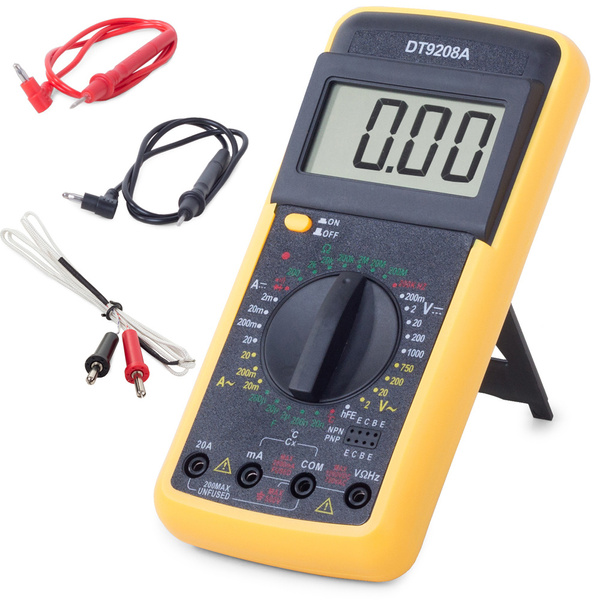

KIT INCLUDES:

☑️ Factory new digital meter

☑️ Set of test leads

☑️ Measurement cable SONDA

☑️ Battery 2xAAA

☑️ Original packaging
